JACQUES

IP EMERGENCY

HELP POINT

DIRECT DIAL INTERCOM RANGE

The Jacques Direct Dial intercom range (VDL Series) is designed for easy connection to new and existing PSTN/PABX telephony systems. These intercom terminals can dial 1, 4 or up to 999 pre-configured telephone numbers, making them ideal entrance intercoms.



Analogue Direct Dial Help Point Units automatically dial a preconfigured telephone number via a PSTN or PABX network once the call button is pressed.



The intercoms feature enabled noise reduction and echo cancellation technology for quality audio and clear conversations. The Direct Dial series intercom terminals include configurable relays ideal for door or gate access. The VDL range of intercoms offer simple installation and require low maintenance, ideal for industrial, marine or commercial applications.

DIRECT DIALLING INTERCOM DIAGRAM

HOW IT WORKS



The Direct Dial Intercom (VDL-441) is used to call a remote telephone, which in turn controls the intercom relays via a PABX/PBX connection.

DIRECT DIAL INTERCOM SYSTEM PRODUCTS

DIRECT DIAL INTERCOM TERMINAL

VDL-441 | 51109, VDL-444 | 51150,

VDL-44K | 51269



  • Standalone analogue intercom

  • Direct dialling to a pre-configured phone number via telephone or PABX line.

  • Vandal resistant design

  • One-touch operation with hands-free communication, once call is established

  • Microphone aperture deters insect nesting and water beads

DIRECT DIAL HELP POINT UNIT

HPU-5D2 | 51151, HPU-5D2-I | 51229



  • Standalone analogue intercom

  • Direct dialling to a pre-configured phone number via telephone or PABX line

  • Highly visible unit, designed with public safety in mind

  • Solid, vandal resistant design

  • One-touch operation with hands-free communication, once call is established

  • Microphone aperture deters insect nesting and water beads

VMI SERIES INTERCOM RANGE

The Jacques VMI standalone intercom system is a ready-to-use, complete intercom system that has been especially designed for areas requiring up to 4 vandal resistant intercom terminals. Ideal for police stations, industrial, commercial and government sites.

VMI SERIES DIAGRAM

HOW IT WORKS



  • The VMI Series Master Station (VMI-155M) combined with four intercom terminals (VSL-251) makes a complete standalone intercom system.

  • The master station communicates with the intercom stations via the four separate call buttons.

  • The Push-To-Talk button allows for half duplex communication between the master station and the intercom terminals.

  • Each intercom terminal can also feature two configurable relays that can be triggered automatically during a call or manually at the master station.

SMALL POLICE STATIONS

Jacques VMI series analogue intercom system features a master station which can connect up to 4 intercom terminals. As the intercom terminals are vandal resistant, they are ideal for police station holding cell intercoms. They allow for communication of those within cells to the master station which would likely be manned by a police officer. This small analogue intercom system does not require a system server ensuring they are cost effective.

VMI STANDALONE MASTER STATION

VMI-155M | 50634



  • Standalone intercom system

  • Master station supports up to 4 slave intercoms

  • Balanced line out for recording

  • Vandal resistant design

  • Dry relay contact output for door/gate control

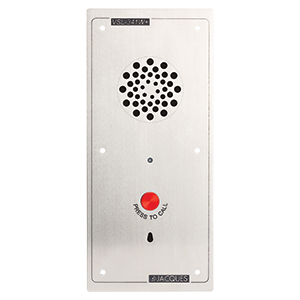

ANALOGUE INTERCOM TERMINAL

VSL-251 | 50330



  • Vandal resistant design

  • One-touch operation with hands-free communication, once call is established
